EChart 标题 title 样式，x轴、y轴坐标显示，调整图表位置等

示例里工作一般情况是够用了，更复杂的可以查询教程：

title 官方解说：http://echarts.baidu.com/option.html#title

坐标相关： X轴：http://echarts.baidu.com/option.html#xAxis

坐标相关： Y轴：http://echarts.baidu.com/option.html#yAxis

表格部分：http://echarts.baidu.com/option.html#grid

<script>
    function getChartsLine() {

        var myChart = echarts.init(document.getElementById(‘progress‘),‘macarons‘);

        var option = {
            title: {
                text: ‘工程折线图‘,      //主标题
                textStyle:{
                    color:‘#0DB9F2‘,        //颜色
                    fontStyle:‘normal‘,     //风格
                    fontWeight:‘normal‘,    //粗细
                    fontFamily:‘Microsoft yahei‘,   //字体
                    fontSize:14,     //大小
                    align:‘center‘   //水平对齐
                },
                subtext:‘副标题‘,      //副标题
                subtextStyle:{          //对应样式
                    color:‘#F27CDE‘,
                    fontSize:14
                },
                itemGap:7
            },
            grid:{          //显示数据的图表位于当前canvas的坐标轴
                x:50,
                y:55,
                x2:50,
                y2:60,
                borderWidth:1
            },
            tooltip: {
                trigger: ‘axis‘
            },
            legend: {
                data:["计划完成","实际完成"]
            },
            toolbox: {
                show: true,
                feature: {
                    saveAsImage: {}
                }
            },
            xAxis:  {
                type: ‘category‘,
                boundaryGap: false,
                data: ["2015-1", "2015-2", "2015-3", "2015-4", "2015-5", "2015-6", "2015-7", "2015-8", "2015-9", "2015-10", "2015-11", "2015-12"]
            },
            yAxis: {
                type: ‘value‘,

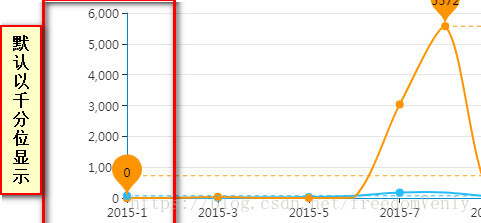

                //默认以千分位显示，不想用的可以在这加一段
                axisLabel : {   //调整左侧Y轴刻度， 直接按对应数据显示
                    show:true,
                    showMinLabel:true,
                    showMaxLabel:true,
                    formatter: function (value) {
                        return value;
                    }
                }
            },
            series: [
                {
                    name:"计划",
                    type:‘line‘,
                    data: [2.6, 5.9, 9.0, 26.4, 28.7, 70.7, 175.6, 182.2, 48.7, 18.8, 300, 2.3],
                    markPoint: {
                        data: [
                            {type: ‘max‘, name: ‘最大值‘},
                            {type: ‘min‘, name: ‘最小值‘}
                        ]
                    },
                    markLine: {
                        data: [
                            {type: ‘average‘, name: ‘平均值‘},
                            [{
                                symbol: ‘none‘,
                                x: ‘90%‘,
                                yAxis: ‘max‘
                            }, {
                                symbol: ‘circle‘,
                                label: {
                                    normal: {
                                        position: ‘start‘,
                                        formatter: ‘最大值‘
                                    }
                                },
                                type: ‘max‘,
                                name: ‘最高点‘
                            }]
                        ]
                    }
                },
                {
                    name:"实际",
                    type:‘line‘,
                    data:[0, 0, 37, 0, 0, 15, 3036, 5572, 0, 0, 0, 0],
                    markPoint: {
                        data: [
                            {type: ‘max‘, name: ‘最大值‘},
                            {type: ‘min‘, name: ‘最小值‘}
                        ]
                    },
                    markLine: {
                        data: [
                            {type: ‘average‘, name: ‘平均值‘},
                            [{
                                symbol: ‘none‘,
                                x: ‘90%‘,
                                yAxis: ‘max‘
                            }, {
                                symbol: ‘circle‘,
                                label: {
                                    normal: {
                                        position: ‘start‘,
                                        formatter: ‘最大值‘
                                    }
                                },
                                type: ‘max‘,
                                name: ‘最高点‘
                            }]
                        ]
                    }
                }
            ]
        };
        myChart.setOption(option);
    }

    getChartsLine();
</script>

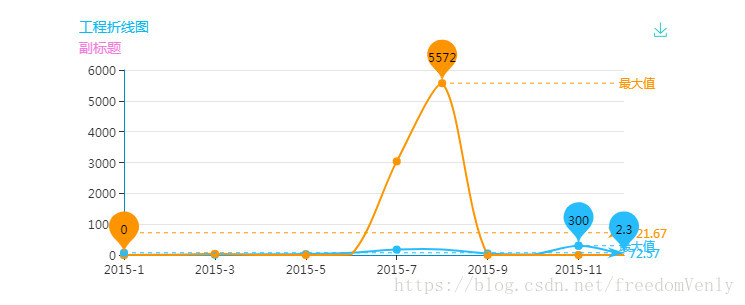

修改后：
